Spontaneous Glass Breakage in Tempered Glass: Causes, Rates & Prevention Guide

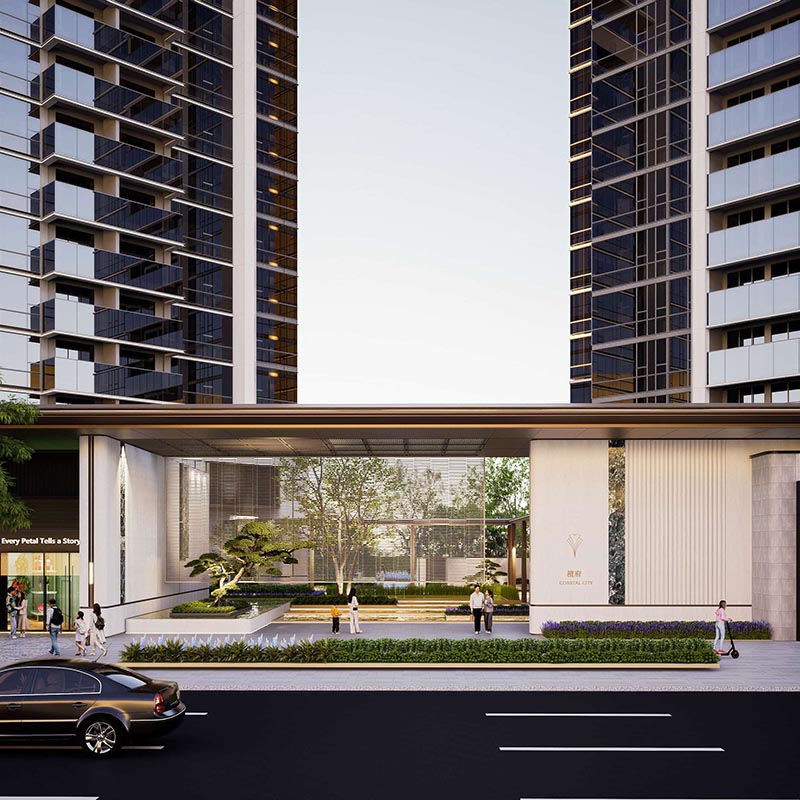

When specifying glass for high-rise buildings, curtain walls, or structural applications, a critical safety question often arises: what if tempered glass breaks without any apparent cause? This worrying phenomenon is globally known as spontaneous glass breakage.

This safety concern is highly valid. Sudden shattering without external impact has become a high-stakes liability and engineering issue in the modern construction industry. Understanding the underlying risk of spontaneous glass breakage is the crucial first step toward managing it effectively on-site. This ultimate guide breaks down why tempered glass fails, the statistical probability of occurrence, and how advanced heat soak testing significantly mitigates this structural risk.

What Causes Spontaneous Glass Breakage in Tempered Glass?

To diagnose this phenomenon, engineers must look at a microscopic culprit: nickel sulfide (NiS) inclusions.

During standard float glass production, tiny contaminants can accidentally enter the molten glass mixture. These impurities typically originate from three main factory sources:

Raw material impurities: Nickel-bearing minerals naturally present in silica sand or contaminated recycled cullet.

Equipment wear and tear: Microscopic stainless steel particles shedding from conveyors or nichrome elements from heating components.

Welding residue: Heavy metallic particles introduced during routine furnace maintenance.

While most manufacturing inclusions remain entirely harmless, nickel sulfide contaminants behave like a ticking time bomb due to a unique molecular trait.

The Science Behind NiS Phase Transformation

The root cause of spontaneous glass breakage lies in a delayed phase change:

The Alpha Phase: At high temperatures exceeding 379 °C, NiS exists in a stable alpha phase.

The Beta Phase: During the rapid cooling phase of the glass tempering process, the NiS inclusion is trapped and slowly attempts to transform into its room-temperature beta phase.

Volume Expansion: This specific molecular transformation triggers a sudden volume expansion of approximately 2.38%.

In fully tempered glass—where the engineered surface compression hovers around a massive 10,000 psi—this localized expansion creates extreme tensile stress. Once this internal stress exceeds the localized strength of the surrounding glass, catastrophic breakage occurs instantly without warning.

Because this molecular transformation is strictly time- and temperature-dependent, the delay can span years:

At 350 °C: Transformation completes in ~1 minute.

At 80 °C: Transformation takes ~7 months.

At 30 °C: Transformation takes ~5.7 years.

This delayed reaction perfectly explains why spontaneous glass breakage frequently occurs years after building handover, appearing to have no external cause.

What is the Statistical Probability of Spontaneous Glass Breakage?

Baseline Breakage Data

Under standard, non-tested conditions, the industry baseline rate for spontaneous glass breakage in fully tempered glass is approximately 0.03% (which equates to roughly 3 out of every 10,000 panels installed).

Peer-reviewed research confirms that this failure rate is directly correlated with the physical size of the internal inclusion. A landmark 2020 study published in the Bulletin of the Chinese Ceramic Society revealed that eliminating NiS inclusions larger than 0.046 mm can drop the spontaneous breakage rate from 0.3% down to an ultra-safe 0.003%. Therefore, project reliability relies entirely on whether a manufacturer can successfully isolate and destroy these problematic panels before they leave the factory floor.

How Heat Soak Testing (HST) Eliminates Defective Glass

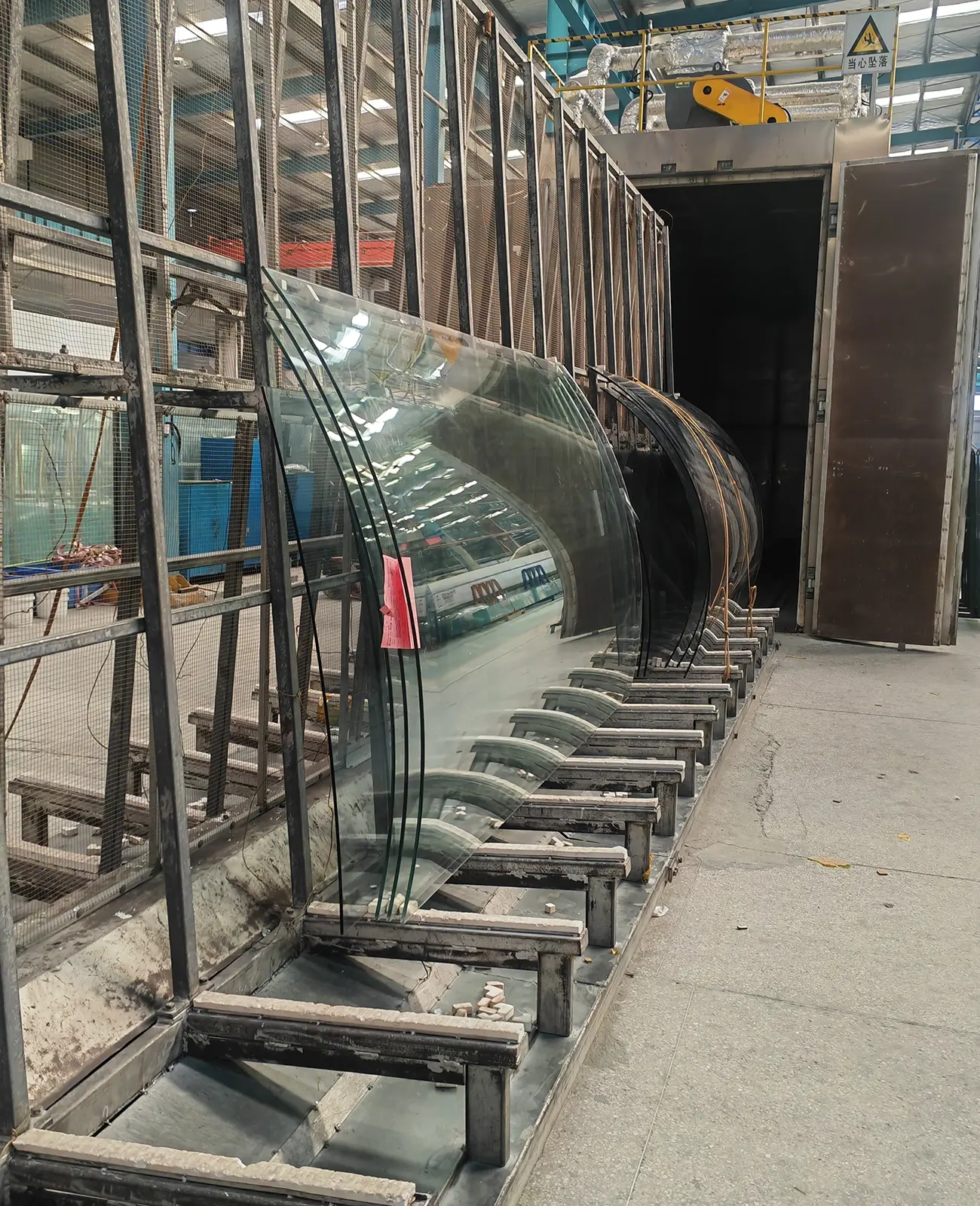

The premier, internationally recognized method to mitigate NiS-related spontaneous glass breakage is the heat soak test (HST), carried out inside a specialized heat soak furnace.

The Core Principle of HST

The engineering concept behind HST is straightforward: artificially accelerate the internal NiS phase transformation within a highly controlled, enclosed chamber so that defective glass breaks safely inside the factory instead of shattering post-installation. By exposing tempered glass to an environment of 290 °C ± 10 °C, the molecular expansion that would naturally take half a decade is forced to occur within a matter of hours.

The Standard 3-Step Heat Soak Process

According to international safety standards like EN 14179-1, a compliant heat soak test follows a strict thermal cycle:

Heating Phase: The glass is systematically and gradually heated to the target temperature zone to completely avoid destructive thermal shock.

Soaking Phase: The core oven temperature is rigidly maintained between 260–290 °C. Depending on the glass thickness and specific structural application, this holding time typically spans 2 to 8 hours. During this critical window, the NiS completes its phase change, intense internal stress develops, and defective panels shatter safely inside the furnace.

Cooling & Inspection: Following a controlled cool-down period, all intact panels undergo thorough inspection and are officially certified as premium heat-soaked tempered glass.

Industry Innovation Note: While traditional HST is batch-based, advanced “on-line” processing methods (such as those developed by Tamglass) can integrate heat soaking directly into the continuous tempering line by holding the glass at 340–370 °C for roughly one minute via high-velocity hot air. This drastically reduces overall lead times by cutting out secondary handling steps.

Evaluating the Effectiveness and Limits of Heat Soaking

Real-World Efficiency

Data shows that standard heat soak testing successfully destroys and eliminates approximately 90–95% of all NiS-contaminated glass panels before shipment.

H3: Understanding Residual Risk Factors

While HST drastically reduces liabilities, a minor residual risk of spontaneous glass breakage persists due to the following variables:

Micro-Inclusions: Ultra-small nickel sulfide particles that do not expand aggressively enough to trigger a break during the short test window.

Location Effects: Inclusions situated perfectly within the low-stress neutral axis zones of the glass matrix.

Transformation Variability: Outlier chemical compositions of NiS that require a slightly longer incubation time than the standard test duration.

Cost vs. Benefit Analysis

Because heat soaking inherently demands extra energy, specialized machinery, and processing time, it naturally adds to the initial procurement cost. However, for high-risk architectural installations, skipping this step represents a massive financial gamble.

When to Specify Heat-Soaked Glass: Critical Applications

To balance project budgets with structural safety, structural engineers and architects should consider heat-soaked tempered glass mandatory for the following high-exposure zones:

Architectural Application	Primary Risk & Engineering Justification
High-Rise Façades	High risk of falling glass injuries to pedestrians; extremely complex and expensive post-installation replacement.
Canopies and Skylights	Overhead glazing safety mandates require maximum protection against overhead shattering.
Balustrades & Railings	Areas featuring high public exposure and direct human contact.
Point-Supported Systems	Spider-fitting and point-fixed designs possess lower structural redundancy if a single panel fails.
Structural Glass Liners	Heavy load-bearing reliance where glass acts as a primary structural element (e.g., glass fins).

Multi-Layered Strategies to Prevent Spontaneous Glass Breakage

Modern Tier-1 glass manufacturers do not rely solely on heat soaking. Achieving near-zero spontaneous breakage requires a strict, multi-layered quality control framework:

1. Raw Material Sourcing Control

Deploying XRF (X-ray Fluorescence) analysis for rapid nickel contaminant detection in raw sand batching.

Utilizing high-intensity magnetic separation to extract metallic particles before melting.

Implementing strict, audited sourcing protocols for all incoming raw materials and cullet.

2. Advanced Furnace Equipment Upgrades

Transitioning to nickel-free or specialized protective coatings on all internal furnace components.

Installing upgraded, high-efficiency compressed air filtration and automated cleaning systems.

3. In-Line Inspection Technologies

Integrating LIBS (Laser-Induced Breakdown Spectroscopy) for real-time elemental mapping.

Utilizing automated thermal imaging scanners to monitor and verify uniform stress distribution.

Deploying AI-powered optical defect recognition systems to catch inclusions right after the float line.

4. Specifying Alternative Glass Engineering Types

If a project demands a zero-risk threshold for spontaneous glass breakage, alternative processing configurations can be utilized:

Heat-Strengthened Glass: Offers twice the strength of annealed glass but features much lower internal tensile stress, rendering it practically immune to NiS spontaneous breakage.

Laminated Glass: Combines two or more sheets with a PVB or SGP interlayer; if a panel suffers spontaneous breakage, the fragments safely adhere to the interlayer.

Heat-Soaked Tempered Glass: The optimal standard for balancing high mechanical wind-load resistance with minimized failure risks.
