When you import safety tempered glass for large architectural projects, transportation damage can become a costly problem. Unlike flat glass, bent tempered glass has a curved structure that creates uneven stress distribution. During long-distance ocean freight , vibration, impact, and improper support may cause edge damage or unexpected breakage.

For global construction projects, the packaging quality before sealing the crate directly reflects a glass manufacturer’s engineering capability. At Guangdong HAIKONG Special Glass Technology Co., Ltd. (SGT), we combine more than 32 years of glass deep processing experience with customized export protection solutions to ensure bent glass arrives safely at the project site.

Why Bent Tempered Glass Requires Special Export Packaging

Bent tempered glass is produced by heating glass above approximately 630°C, forming it into a designed curvature, and rapidly cooling it through quenching. This process improves strength by 3–5 times compared with ordinary annealed glass.

However, the curved geometry also creates unique transportation challenges:

Curved surfaces require precise supporting points.
Uneven pressure can create localized stress concentration.
Incorrect packing may cause edge impact during container movement.
Ocean transportation exposes glass crates to continuous vibration and humidity.

For this reason, standard flat glass packaging methods are not suitable for bent tempered glass.

3 Structural Protection Rules for Bent Tempered Glass Packaging

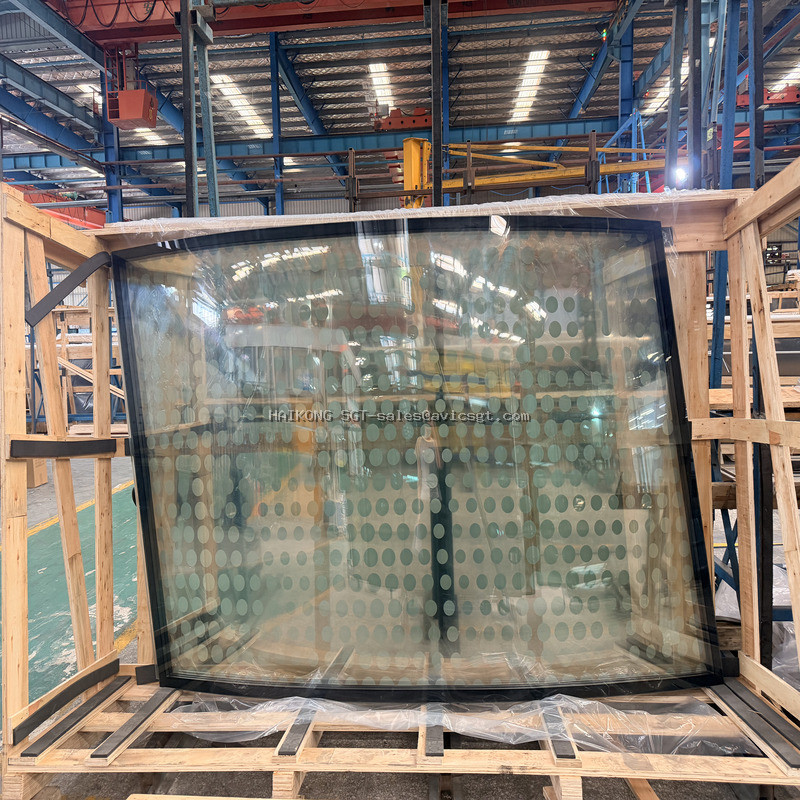

1. Custom Shape Matching Based on Glass Radius

The wooden crate base and side supports must be manufactured according to the glass radius, arc length, and panel dimensions.

A professional packaging solution should ensure:

The curved section receives uniform support.
No part of the glass is suspended without support.
Contact pressure is distributed evenly across the glass surface.

SGT produces customized packaging designs for bent tempered glass panels up to 3100 × 12000 mm, supporting different curvature types including single curvature, multi-curvature, and arc-shaped profiles.

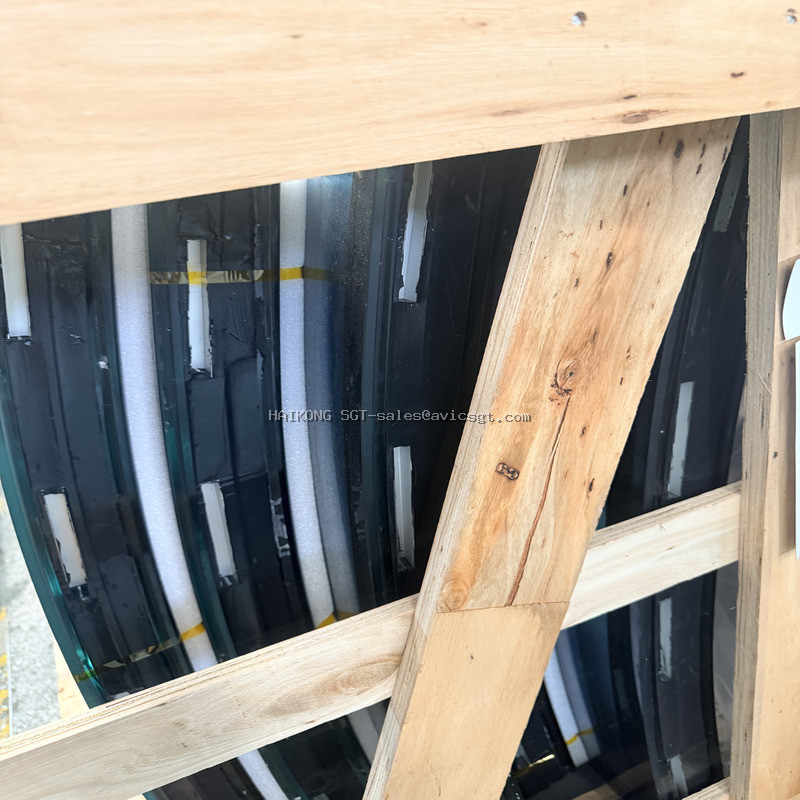

2. High-Density Rubber Cushioning Protection

Direct contact between glass and wood can create concentrated stress points. Therefore, every contact area requires high-density rubber damping strips.

These cushioning materials help:

Absorb vibration during sea transportation.
Reduce impact from container movement.
Prevent scratches and edge damage.
Separate glass surfaces from rigid wooden structures.

For architectural glass suppliers, internal crate protection is as important as the glass production process itself.

3. Bi-Directional Locking System

During ocean freight, containers may experience tilting, acceleration, and repeated vibration. Without proper locking, curved glass can move slightly inside the crate.

A reliable export package uses:

Removable top locking blocks.
Side fixing structures.
Reinforced wooden frames.

These systems eliminate unnecessary movement and maintain stable positioning throughout transportation.

Pre-Sealing Inspection Checklist for Glass Export Crates

Before closing the wooden crate, you should verify the internal protection structure:

Bottom Support System

High-strength rubber strips should be installed at the base to distribute the vertical weight of multiple curved glass panels.

Moisture Protection Layer

A waterproof dust-proof film combined with moisture absorbers helps protect glass edges from high humidity during overseas shipping.

Fumigation-Free Plywood Crate

SGT uses durable plywood packaging solutions that provide strong mechanical protection while meeting international export requirements for fumigation-free wooden materials.

Bent Tempered Glass Packaging vs Standard Glass Packaging

Feature	Bent Tempered Glass Packaging	Standard Flat Glass Packaging
Support Method	Customized radius-based support	Flat panel support
Cushioning	High-density rubber damping	Basic separators
Fixing System	Multi-direction locking	Simple frame fixing
Transportation Risk	Higher due to curvature	Lower
Packaging Design	Project-specific engineering	Standardized

How SGT Ensures Safe Global Glass Transportation

As an experienced architectural glass manufacturer, SGT applies a complete quality management process:

Project Requirement Review

Engineers analyze glass size, curvature, thickness, and transportation route.
Packaging Structure Design

Customized wooden crates are designed according to the glass geometry.
Internal Protection Installation

Rubber cushions, moisture barriers, and locking systems are installed.
Final Inspection Before Shipment

Each crate is checked before sealing and loading into containers.

SGT has supplied glass solutions for more than 500 global projects, covering markets including North America, Europe, Asia, and China.

FAQ

1. Why does bent tempered glass need customized packaging?

Because curved glass has different stress distribution compared with flat glass. Customized supports prevent uneven pressure and reduce breakage risks during transportation.

2. Can bent tempered glass be shipped by sea?

Yes. With engineered wooden crates, rubber cushioning, moisture protection, and locking structures, bent tempered glass can be safely transported for international projects.

Conclusion

Choosing the right supplier for safety tempered glass is not only about glass performance but also about transportation reliability. Bent glass requires professional packaging engineering, from radius-matched supports and vibration protection to moisture control and secure locking systems.

With over 32 years of experience, Guangdong HAIKONG Special Glass Technology Co., Ltd. (SGT) provides customized bent tempered glass solutions and export packaging standards for demanding architectural projects worldwide.
