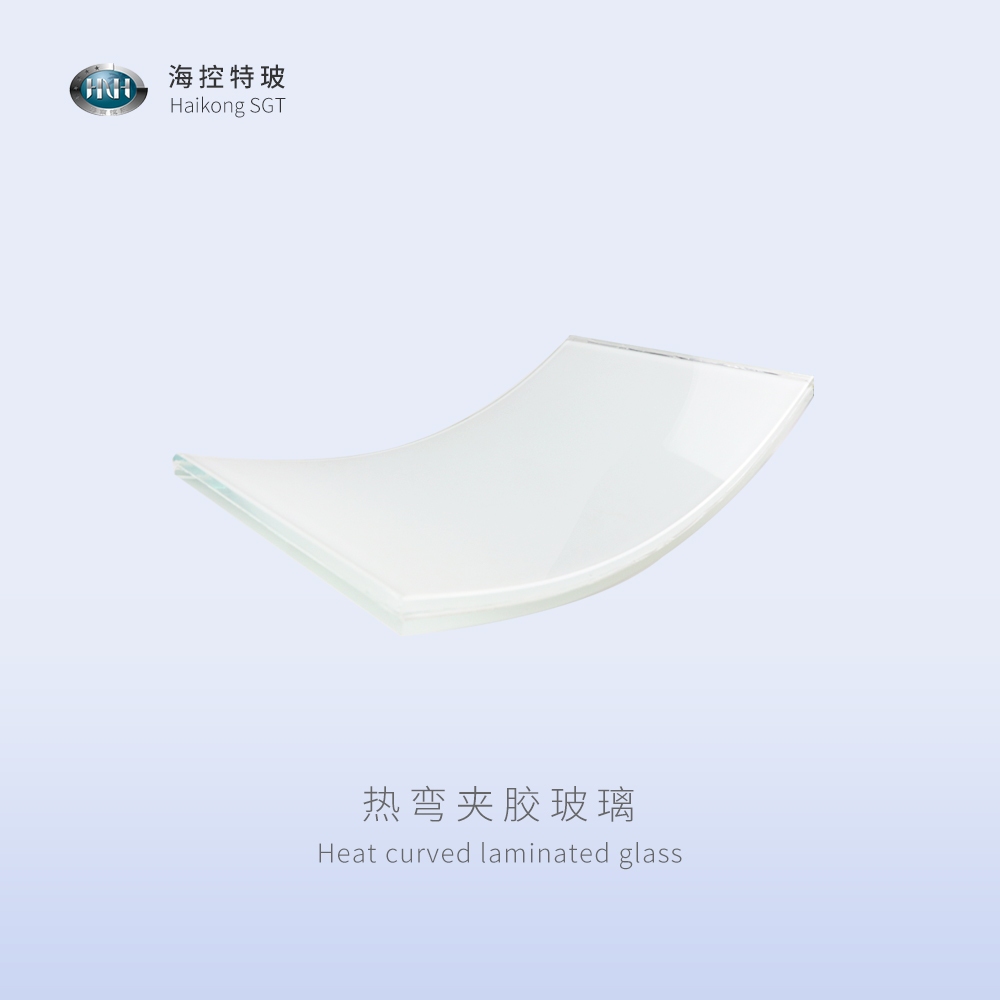

Heat Bent Laminated Glass

In modern architecture, curved glass transforms building envelopes from flat planes into flowing, sculptural forms. But curvature alone is not enough—when glass is used in canopies, railings, skylights, or facades, safety is non‑negotiable.

Heat bent laminated glass delivers both: the design freedom of custom‑curved glass, combined with the post‑breakage integrity of lamination. Whether your project demands a sweeping entrance canopy, a frameless curved balustrade, or a dramatic skylight, this is the material that makes it possible—safely.

What Is Heat Bent Laminated Glass?

Heat bent laminated glass is a safety glass product created by bonding two or more layers of heat‑bent glass with a durable plastic interlayer, typically PVB (polyvinyl butyral) or SGP (SentryGlas®/ionoplast). The glass layers are first heated to approximately 580–620°C until pliable, then shaped over a mold into the desired curve, and slowly annealed to remove internal stress. After bending, the glass sheets are assembled with the interlayer and bonded under high heat and pressure in an autoclave. The result is a curved glass unit that, even when broken, holds its fragments in place rather than falling freely.

Unlike bent tempered glass, which is safety glass by virtue of its breakage pattern (small, blunt fragments), heat bent laminated glass achieves safety through lamination—the interlayer retains broken glass, preventing dangerous fallout while maintaining a barrier against weather and intrusion. For applications where both curvature and occupant protection are essential, this combination is unmatched.

The Manufacturing Process

Producing heat bent laminated glass requires precision at every stage:

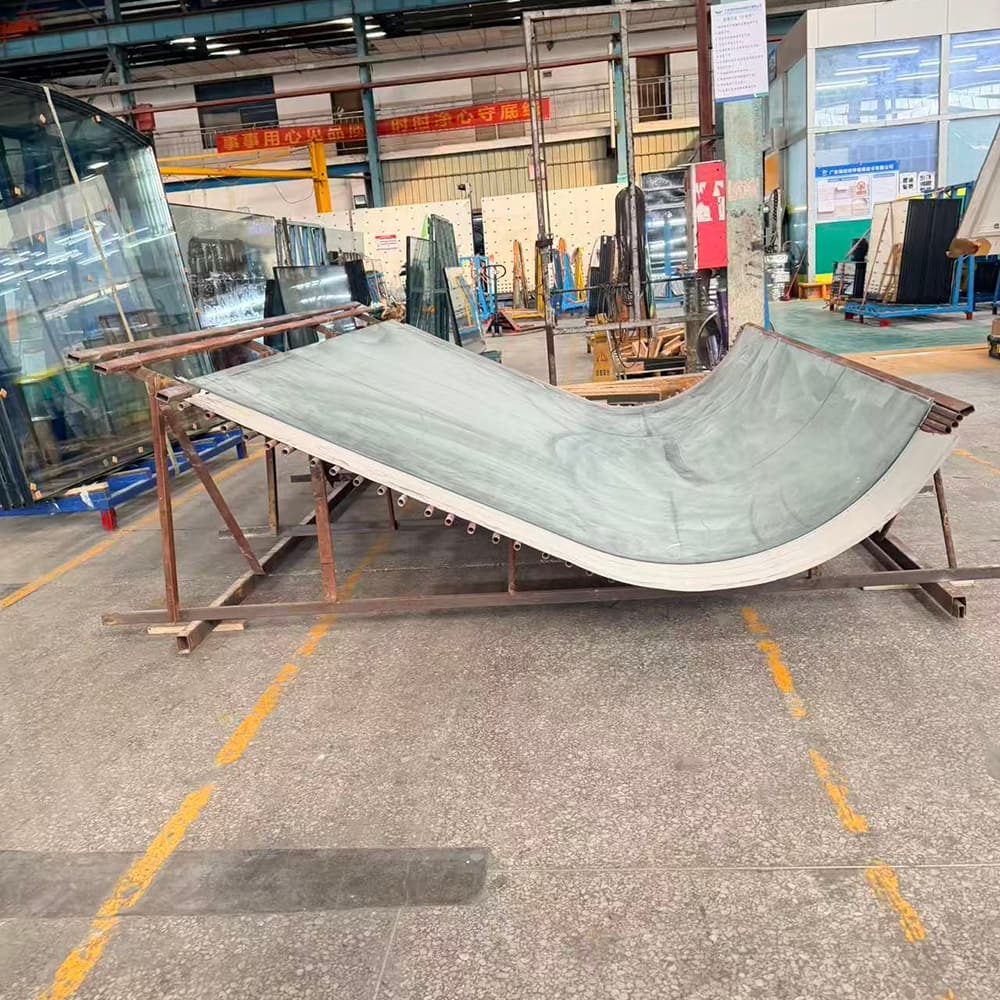

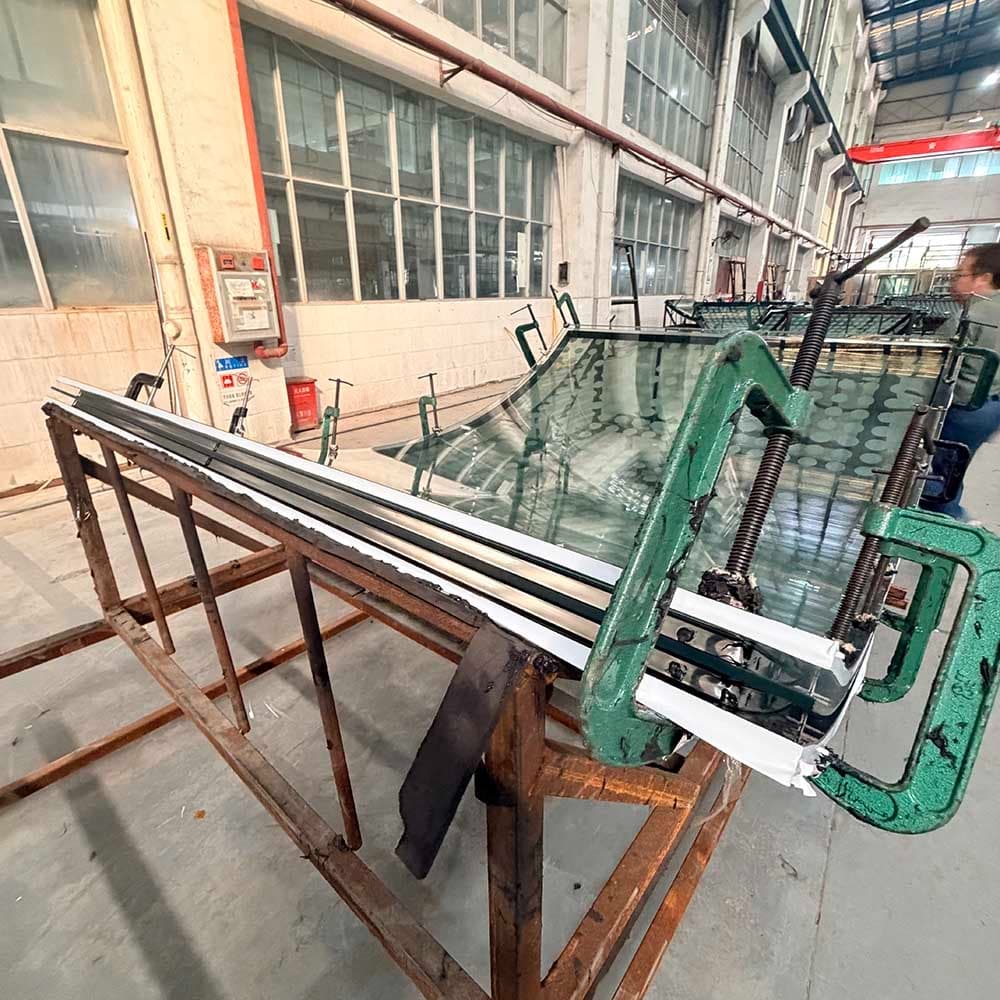

1. Glass Bending. Flat glass is cut to final dimensions—all holes, notches, and edge work must be completed before bending. The glass is then heated in a bending furnace to its softening point and shaped over a concave mold, either by gravity (slumping) or mechanical pressure. After forming, the glass undergoes controlled annealing to relieve internal stress.

2. Interlayer Placement. A PVB or SGP interlayer is placed between the bent glass layers. The interlayer thickness (typically 0.76mm, 1.14mm, or 1.52mm) is selected based on safety requirements and mechanical loads.

3. Autoclave Bonding. The glass‑interlayer assembly is subjected to high temperature (approximately 140°C) and high pressure (12–14 bar) in an autoclave, permanently bonding the layers into a single, cohesive unit.

The result is a curved laminated glass unit that combines the aesthetics of bent glass with the safety and durability of lamination.

PVB vs. SGP Interlayers: Choosing the Right Material

The interlayer is the heart of any laminated glass product. The choice between PVB and SGP significantly affects performance:

When to Specify PVB: For standard architectural applications where safety and UV protection are the primary concerns, PVB provides excellent performance at a moderate cost. It also offers superior acoustic dampening, making it ideal for noise‑sensitive environments.

When to Specify SGP: For structural applications (glass floors, load‑bearing canopies), high‑traffic public spaces, hurricane‑prone regions, or any installation where post‑breakage load retention is critical, SGP is the preferred choice. Its exceptional stiffness and tear strength mean that even after breakage, the panel can continue to bear significant loads until replacement occurs.

Why Specify Heat Bent Laminated Glass?

Architects and specifiers choose heat bent laminated glass for four core reasons:

1. Curved Aesthetics with Safety. Achieve tight radii, double curves, or custom shapes while meeting safety glazing standards—something bent tempered glass alone cannot always deliver for complex geometries.

2. Post‑Breakage Integrity. Unlike monolithic bent tempered glass, which shatters into small pieces that fall freely, laminated glass retains broken fragments. For overhead glazing (skylights, canopies) and elevated installations (balconies, railings), this is essential.

3. Forced Entry Resistance. The interlayer resists penetration, making laminated glass significantly more secure than monolithic glass of equivalent thickness.

4. UV Protection and Acoustic Insulation. PVB interlayers block 99.5% of harmful UV radiation, protecting interior furnishings and artwork. Laminated glass also dampens noise transmission, improving occupant comfort in urban environments.

Architectural Applications

Heat bent laminated glass is specified across a wide range of building types:

• Canopies and Skylights: Overhead glazing demands both curvature and fall protection. Laminated construction ensures that even if glass is broken, fragments remain bonded to the interlayer, preventing dangerous fallout.

• Curved Balustrades and Railings: Frameless curved glass railings follow the geometry of stairs and balconies while providing occupant safety through lamination.

• Curtain Walls and Facades: Large‑format curved laminated glass creates seamless, flowing building envelopes with enhanced security and UV protection.

• Atrium Glazing: Double‑curved laminated glass enables domed or undulating atriums that flood interior spaces with natural light while maintaining safety.

• Glass Floors and Structural Glass: For walkable glass surfaces, SGP‑laminated bent glass provides the post‑breakage load capacity required for occupant safety.

• Museum and Retail Displays: UV‑blocking laminated glass protects valuable artifacts and merchandise while curved forms enhance visual impact.

Customization Capabilities

We offer heat bent laminated glass in a wide range of configurations:

Conclusion

Heat bent laminated glass bridges the gap between architectural ambition and safety. It allows designers to specify curved, flowing forms without compromising on occupant protection, security, or long‑term durability. Whether your project requires a single custom reception panel or a full facade of curved laminated units, this is the material that makes visionary designs buildable—and safe.

Contact us to discuss your curved glass requirements. From cylindrical bends to complex double‑curved geometries, we deliver heat bent laminated glass that meets both your aesthetic vision and your safety standards.
